UFO Licht Website White/Decorative LED Light Source
UFO Sirius Decorative LED Light Source
A very powerful yet efficient fibre optic light source, powered by LED technology, which incorporates decorative effects.
Extremely high power output makes this light source suitable for multiple lighting tasks where traditionally metal halide units have been employed. Almost silent in operation, the Sirius outputs light which is similar to that of a 150W metal halide lamp.
A choice of either a 6 colour colourwheel or a twinkle effect wheel can also be installed, and this offers the same control options as the dimming effects; manual, 0-10V or DMX.
The Sirius has an inbuilt manual dimmer and dimming is also controllable via either DMX or 0-10V.
With a standard 30mm fibre port connector, this light source is equally suited to new projects or for retro-fitting to existing fibre optic installations.
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fibre Type | Glass / PMMA |
| Material / Finish | Aluminium - powdercoated grey (RAL7024) |

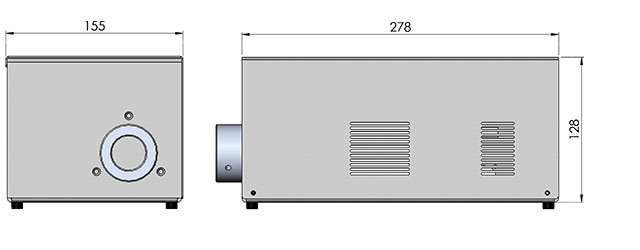

| Dimensions (L x W x H) | 278mm x 155mm x 128mm |
| Weight | 2.41kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Dimming Functionality | 0-10V / DMX / Manual |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 3 channels |
| Effects Wheel Options & Functionality | Colour or twinkle controlled by 0-10V, DMX or manual operation |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light |
| LED Array Power | 90W |
| LED Array Model | LED engine LZP 24 die emitter |
| LED Array Life (L70, B10) | >36,000 hours (typical) |
| Cool White Option | 5500K / 75CRI / 5700lm |
| 2200K, 2700K, 3000K and 5500K Options | Please see the new Sirius S Decorative light source model which offers these CCT options |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.42A @240Vac |
| Mains Voltage VA Rating | 99VA |
| External PSU Type | Meanwell, 24V, 3.75A, 90W |
| Motor Type | Rotalink 25C13/YS0Lp3L3E - 12V - 60:1 |
| Fan Type | Sunon 80mm - 28dBA |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS050421R5 | Weatherproof enclosure |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
