ATTRACTA MAGNETIC LIGHTING
DESIGNED AND MANUFACTURED BY UFO
Cabinet & Display LED track system
CONTACT US TO DISCUSS YOUR PROJECT
ATTRACTA MAGNETIC LIGHTING
DESIGNED AND MANUFACTURED BY UFO
Cabinet & Display LED track system
CONTACT US TO DISCUSS YOUR PROJECT| UFO ATTRACTA F1 FITTING / GENERAL INFORMATION | |
|---|---|
| Light source | White Light LED |
| Operating Environment | Indoor use only |
| IP Rating | IP20 |
| Material | Aluminium |
| Available Finishes | Black / Silver / White (all with chrome ball) |
| Securing Method | Magnetic |
| UFO ATTRACTA F1 FITTING / OPTICAL DATA | |
|---|---|
| Available Optics | 16° / 23° / 36° / 61° |
| UFO ATTRACTA F1 FITTING / LED ARRAY DATA | |
|---|---|
| LED Type | Osram Oslon Square |
| LED Life (L70, B10) | >54,000 hours |
| Fitting Drive Current | 150 mA |
| Nominal Power | 0.75W |
| Colour Temperature & CRI Options | 2700K: 98CRI (typical) 3000K: 98CRI (typical) 4000K: 97CRI (typical) 5000K: 92CRI (typical) 6500K: 90CRI (typical) |
| *Lux levels (2700K) measured with narrow optic at specified distances | 0.5m - 662lux 1.0m - 173lux 1.5m - 78lux |
| *Lux levels (3000K) measured with narrow optic at specified distances | 0.5m - 827lux 1.0m - 206lux 1.5m - 90lux |
| *Lux levels (4000K) measured with narrow optic at specified distances | 0.5m - 809lux 1.0m - 203lux 1.5m - 91lux |
| *Lux levels (5000K) measured with narrow optic at specified distances | 0.5m - 800lux 1.0m - 200lux 1.5m - 90lux |
| *Lux levels (6500K) measured with narrow optic at specified distances | 0.5m - 800lux 1.0m - 200lux 1.5m - 90lux |
| Typical Luminous Flux Measured with 23° optic. Nominal values used for 5000K and 6500K fittings | 2700K - 38lm/W 3000K - 50lm/W 4000K - 47lm/W 5000K - 55lm/w 6500K - 64lm/W |
* Fittings measured using narrow optic at specified distances. Nominal values used for 3000K and 6500K variants.
| UFO ATTRACTA F1 FITTING / ARTICULATION | |
|---|---|
| Rotation | 360° |
| UFO ATTRACTA F1 FITTING / DRIVER INFORMATION | |
|---|---|
| Mains Supply Voltage | 100/240V AC. 47-63Hz, 0.58A |
| PSU Output | 5V DC |
| Driver Working Current | 6A |
| Driver Functionality | Manual dimming, DMX, 0-10V, sensor input |
| UFO ATTRACTA F2 FITTING / GENERAL INFORMATION | |
|---|---|
| Light source | White Light LED |
| Operating Environment | Indoor use only |
| IP Rating | IP20 |
| Material | Aluminium |
| Available Finishes | Black / Silver / White (all with chrome ball) |
| Securing Method | Magnetic |
| UFO ATTRACTA F2 FITTING / OPTICAL DATA | |
|---|---|
| Available Optics | 13.5° / 19° / 28° |
| UFO ATTRACTA F2 FITTING / LED ARRAY DATA | |
|---|---|
| LED Type | Osram Oslon Square |
| LED Life (L70, B10) | >54,000 hours |
| Fitting Drive Current | 400 mA |
| Nominal Power | 2W |
| Colour Temperature & CRI Options | 2700K: 98CRI (typical) 3000K: 98CRI (typical) 4000K: 97CRI (typical) 5000K: 92CRI (typical) 6500K: 90CRI (typical) |
| *Lux levels (2700K) measured with medium optic at specified distances | 0.5m - 1392lux 1.0m - 427lux 1.5m - 205lux |
| *Lux levels (3000K) measured with medium optic at specified distances | 0.5m - 2061lux 1.0m - 575lux 1.5m - 258lux |
| *Lux levels (4000K) measured with medium optic at specified distances | 0.5m - 1237lux 1.0m - 461lux 1.5m - 238lux |
| *Lux levels (5000K) measured with medium optic at specified distances | 0.5m - 1500lux 1.0m - 500lux 1.5m - 200lux |
| *Lux levels (6500K) measured with medium optic at specified distances | 0.5m - 1500lux 1.0m - 500lux 1.5m - 200lux |
| Typical Luminous Flux Measured with 19° optic. Nominal values used for 5000K and 6500K fittings | 2700K - 29lm/W 3000K - 43lm/W 4000K - 45lm/W 5000K - 53lm/w 6500K - 62lm/W |
* Fittings measured using medium optic at specified distances. Nominal values used for 3000K and 6500K variants.
| UFO ATTRACTA F2 FITTING / ARTICULATION | |
|---|---|
| Rotation | 360° |
| UFO ATTRACTA F2 FITTING / DRIVER INFORMATION | |
|---|---|
| Mains Supply Voltage | 100/240V AC. 47-63Hz, 0.58A |
| PSU Output | 5V DC |
| Driver Working Current | 6A |
| Driver Functionality | Manual dimming, DMX, 0-10V, sensor input |
| UFO ATTRACTA TRACK / GENERAL INFORMATION | |
|---|---|
| Material | Aluminium |
| Available Finishes | Anodised black |
| Dimensions - Rectangular variant for surface mounting | Length: can be specified up to 2300mm Width: 20mm Height: 13.75mm |
| Dimensions - Triangular variant for corner mounting | Length: can be specified up to 2300mm Width: 36mm Height: 26mm |
| Electrical Details | Powered from one end using 5V DC PSU and driver unit Optional dimming functionality |
| Securing Method | Magnetic |
| UFO ATTRACTA MOUNTING FEET / GENERAL INFORMATION | |
|---|---|
| Material | Aluminium with plastic insert |
| Available Finishes | Black as standard |
| UFO ATTRACTA 'C' CLIPS / GENERAL INFORMATION | |
|---|---|
| Material | Polycarbonate |
| Available Finishes | Black as standard |
| UFO CV2 DRIVER / TECHNICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 11 - 17V DC |
| Rated Power | 30W maximum output |
| Output Voltage | 5V DC (adjustable) |
| Protection | SCP / OCP / OTP |
| Functionality | 2 channels individual manual (current sink) dimming with electronic potentiometer. 0-10V (current source) output dimming - controls both LED outputs. DMX with 4 channels (LED 1 dimming & on/off, LED 2 dimming & on/off). Controllable from DMX system or can operate standalone master/slave with other CV2 drivers. 2 channels (N/O & N/C) sensor input to trigger LED 1 & LED 2 output simultaneously with fade in, delay and fade out controls. |
| IP Rating | IP20 for indoor use only |
| Connection | Power - 2.1mm input jack Controls & outputs - screw terminals |
| Dimensions (W x L x H) | 146mm x 68mm x 40mm |
| Optional Accessories | Unidim CVD3 (DM-ELEC-XX-XX-XX-D) - single electronic (current sink) potentiometer Unidim CVD4 (DM-ELEC-XX-XX-XX-DD) - dual electronic (current sink) potentiometers Both CVD3 & CVD4 are supplied on mounting plates |
| ATTRACTA F1 FITTING / ORDERING CODES | Click grey buttons to configure |
|---|

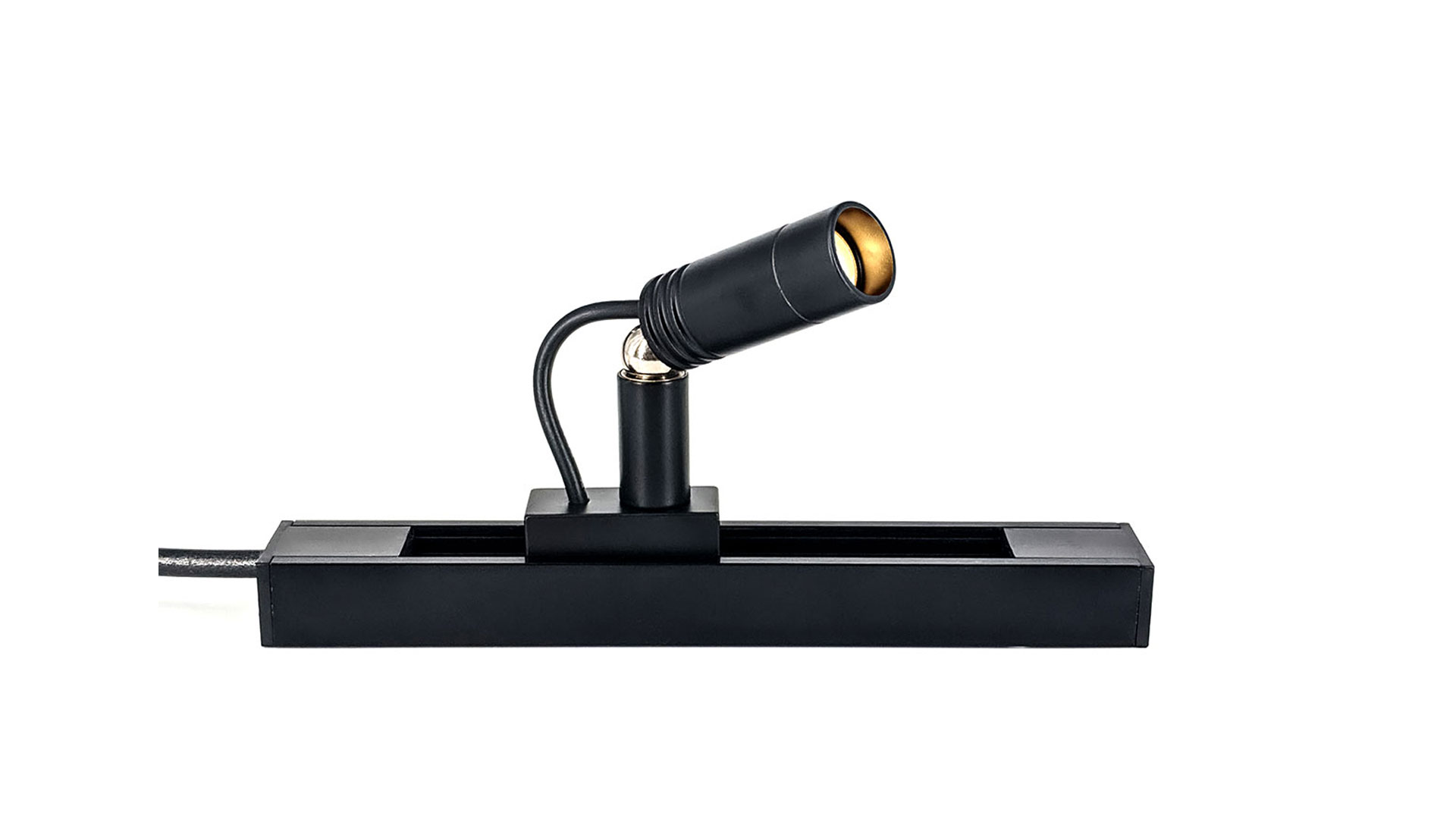

F1 fitting shown mounted in Attracta track.
| ATTRACTA F2 FITTING / ORDERING CODES | Click grey buttons to configure |
|---|
F2 fitting shown mounted in Attracta track.
| ATTRACTA TRACK / ORDERING CODES | Click grey buttons to configure |
|---|
Please state length in mm
Max length: 2300mm
| ATTRACTA MOUNTING OPTIONS / ORDERING CODES | Click grey buttons to configure |
|---|
| ATTRACTA CV2 DRIVER / ORDERING CODES | Click grey buttons to configure |
|---|
