Cabinet Lighting Kit with LD1 LED Fitting


Kit Overview

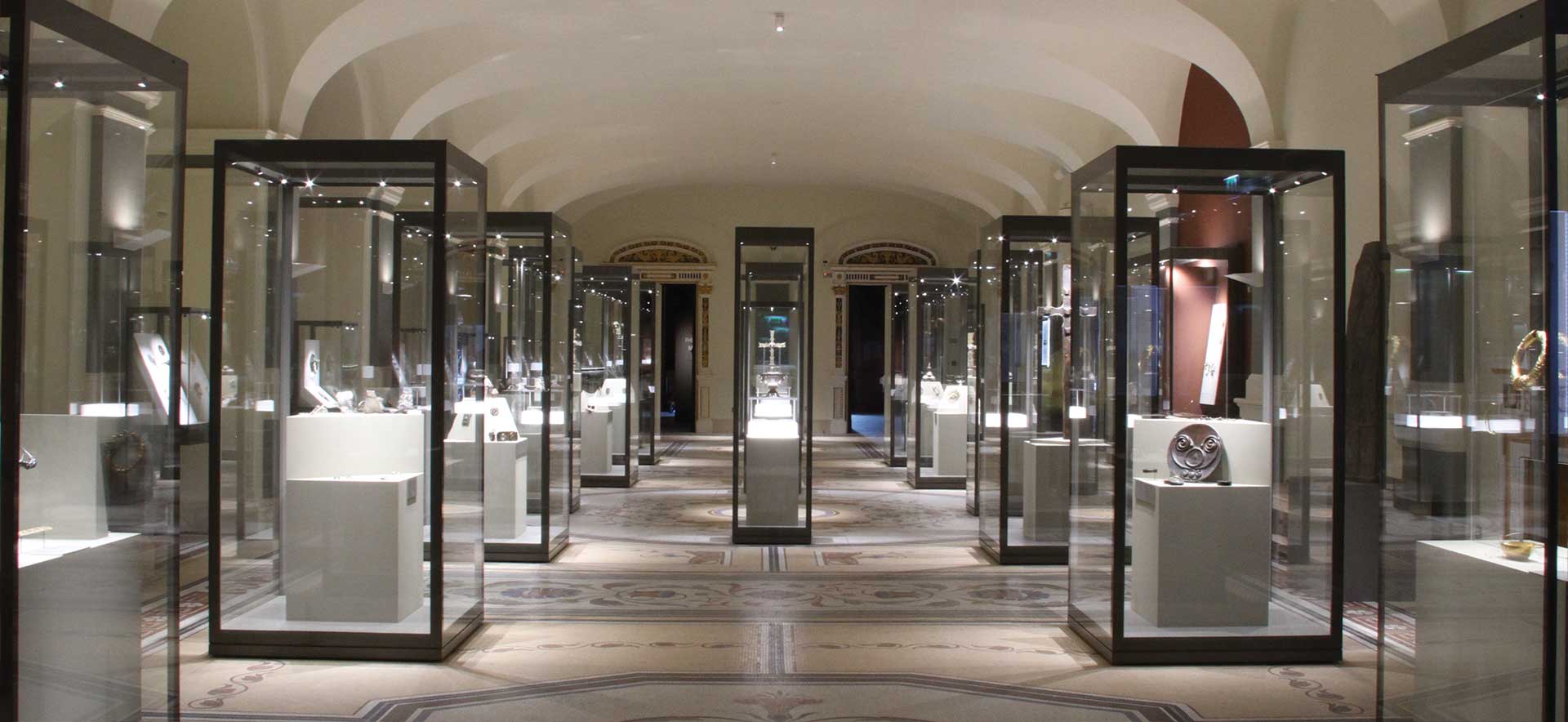

Our LD1 LED lighting kits offer a quick and easy solution for lighting cabinets and display cases of all shapes and sizes.

This kit comes with a choice of colour temperatures, high colour rendition and narrow, medium and wide beam options to suit varying requirements.

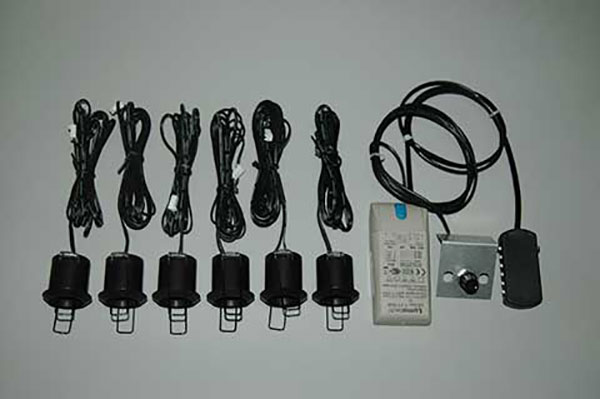

Also included is a driver unit which allows you to control the overall dimming level of the lighting via a potentiometer which can be mounted in a standard 1 gang pattress box, a splitter box and 2.5 metres of cable for each fitting.

Whether you want to gently wash the interior of a cabinet or highlight specific areas or niches, it is achievable with the LD1.


Easy Installation

The LD1 fitting is easily installed in a variety of mounting surfaces and is held in place with two retaining springs which are not visible once the fitting is installed.

The fitting requires a 35mm cutout in the mounting surface.

Once the holes are cut, you simply push the fittings into place, and the robust securing springs will snap into place. You then just connect their power cables to the splitter box and switch on.


Ordering Codes

No. of Fittings Bezel Colour Ordering Code
4 x LD1 Black CLED-LD1-4B+[colour temperature]+[lens][1]
4 x LD1 Silver CLED-LD1-4S+[colour temperature]+[lens][1]
6 x LD1 Black CLED-LD1-6B+[colour temperature]+[lens][1]
6 x LD1 Silver CLED-LD1-6S+[colour temperature]+[lens][1]
8 x LD1 Black CLED-LD1-8B+[colour temperature]+[lens][1]
8 x LD1 Silver CLED-LD1-8S+[colour temperature]+[lens][1]
10 x LD1 Black CLED-LD1-10B+[colour temperature]+[lens][1]
10 x LD1 Silver CLED-LD1-10S+[colour temperature]+[lens][1]
12 x LD1 Black CLED-LD1-12B+[colour temperature]+[lens][1]
12 x LD1 Silver CLED-LD1-12S+[colour temperature]+[lens][1]
[1] Add colour temperature and lens type to end of code (3K - 3000K / 4K - 4000K) and (WD - wide / ME - medium / NA - narrow). E.G. CLED-LD1-4B-3K-WD

The LD1 Fitting

Overview

Our LD range of low glare recessed downlights use Cree LEDs to provide decorative lighting throughout indoor settings. Each fitting features a discreet design to ensure that your eyes are drawn to the items and areas being illuminated and not on the downlights themselves.

The LD1, which is the first fitting in the range, comes with a choice of colour temperatures, high colour rendition and narrow, medium and wide beam options to suit varying requirements. Multiple methods of dimming are also available to provide greater functionality and control over your luminaires. Whether you want to gently wash a wall or highlight specific areas or niches, it is achievable with the LD1.

With an angular bezel of 42mm in diameter and a recess depth of 33mm, the fitting can easily be installed in the shallowest of ceilings or other surfaces using the built in spring clip mounting system.


ld1 image and cad

Technical Specifications

Light source

LED

Colour temperatures & CRI

3000K - 98 CRI (typical)
4000K - 97 CRI (typical)

Power consumption

1.12w per fitting, not inc. driver

Voltage

3.2v nominal

Typical luminous flux (based on 19° lens)

3000K: 65lm/W
4000K: 72lm/W

Dimming options

Local potentiometer dimming

Optics

13.5° / 19° / 28°

LED life

50,000 hours

Material

Aluminium

Colours

Black body with black or silver coloured flange
