Cabinet Lighting Kit with MBL2 LED Fitting


Kit Overview

Our MBL2 LED lighting kits offer a quick and easy solution for lighting cabinets and display cases of all shapes and sizes.

This kit comes with a choice of colour temperatures, high colour rendition and narrow, medium and wide beam options to suit varying requirements.

Also included is a driver unit which allows you to control the overall dimming level of the lighting via a potentiometer which can be mounted in a standard 1 gang pattress box, a splitter box and 2.5 metres of cable for each fitting.

Whether you want to gently wash the interior of a cabinet or highlight specific areas or niches, it is achievable with the MBL2.


Easy Installation

The MBL fitting range can be easily installed on any rigid surface.

Simply pull the base cap up from the mounting foot to reveal the 3 mounting holes.

Mark the positions for the holes and also mark a position for the fittings power cable. Drill pilot holes for the mounting screws and a 5mm diameter hole for power cable.

Push the power cable through hole, and screw the fitting to mounting surface.

Finally, connect all power cables to the junction box and switch on power.


Ordering Codes

No. of Fittings Bezel Colour Ordering Code
4 x MBL2 Black CLED-MBL2-4B+[colour temperature]+[lens][1]
4 x MBL2 Silver CLED-MBL2-4S+[colour temperature]+[lens][1]
6 x MBL2 Black CLED-MBL2-6B+[colour temperature]+[lens][1]
6 x MBL2 Silver CLED-MBL2-6S+[colour temperature]+[lens][1]
8 x MBL2 Black CLED-MBL2-8B+[colour temperature]+[lens][1]
8 x MBL2 Silver CLED-MBL2-8S+[colour temperature]+[lens][1]
10 x MBL2 Black CLED-MBL2-10B+[colour temperature]+[lens][1]
10 x MBL2 Silver CLED-MBL2-10S+[colour temperature]+[lens][1]
12 x MBL2 Black CLED-MBL2-12B+[colour temperature]+[lens][1]
12 x MBL2 Silver CLED-MBL2-12S+[colour temperature]+[lens][1]
[1] Add colour temperature and lens type to end of code (3K - 3000K / 4K - 4000K) and (WD - wide / ME - medium / NA - narrow). E.G. CLED-MBL2-4B-3K-WD

The MBL2 Fitting

Overview

The larger of the 2 MBL LED fittings, the MBL2 features the same magnetic articulation system present in all the fittings in the range.

The magnetic ball allows complete freedom of movement, so the fitting can be tilted and rotated to point exactly as required.

Available in 2 colour temperatures and with a wide range of available optics, the MBL2 is finished to complement any decor and provides contemporary, functional light in any environment.

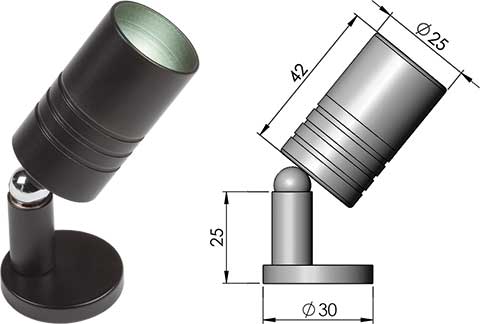

mbl2 image and cad

Technical Specifications

Light source

LED

Colour temperatures & CRI

3000K: 96 CRI (typical)
4000K: 95 CRI (typical)

Power consumption

1.12W per fitting, not inc. driver

Voltage

3.2v (nominal)

Lumens per watt (based on 13.5° lens)

3000K: 51lm/W
4000K: 54lm/W

Dimming

Local potentiometer dimming

Optics

13.5° / 19° / 28°

LED life

50,000 hours

Material & finishes

Aluminium finished in black or silver
