Ionic Magnetic Track Lighting

ionic 1

IONIC

DESIGNED AND MANUFACTURED BY UFO

Magnetic track lighting with complete local & global dimming.

CONTACT US TO DISCUSS YOUR PROJECT
ionic 2

FULLY
CONFIGURABLE

THE IONIC SYSTEM IS

Perfect for gallery & display lighting.

CONTACT US TO DISCUSS YOUR PROJECT
ionic sx standard fitting

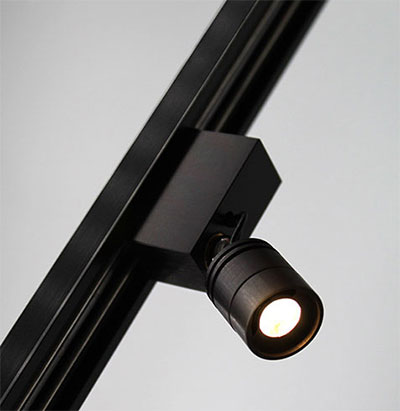

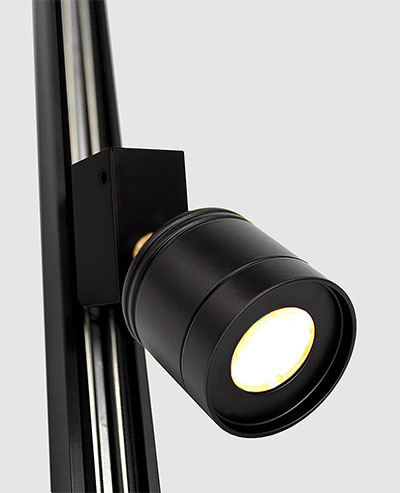

UFO Ionic is the ultimate magnetic track lighting system for display lighting. Featuring a discrete, low profile track and a wide range of fitting options, the Ionic fittings can be dimmed either locally, globally or in a combination of both.

The mounting track for Ionic is a low profile 9mm version which looks great when the track needs to be visible but can also be recessed into a mounting surface if required.

The fitting's magnetic attraction to the track allows them to be freely placed, moved, slid and removed without any interference from wires or cables.

The Ionic fittings are polarity agnostic which means that the fittings can be placed on the track at any point in any direction. The fittings include global and local dimming, meaning each fitting can be dimmed on a track then all the fittings can be dimmed at once.

This system offers full 360° rotation as well as 135° of tilt - so it can be pointed in almost any direction. There are two colour temperatures for all fittings and the Ionic spotlights have a variety of lens types, from narrow to wide angled, and all can be mixed and matched within the system.


Ionic SX Fitting - Standard

The standard size SX snoot on the original Ionic base. Offers great light output in a discrete package with the ability to be locally or globally dimmed.

Product Information:

Available in both 3000K and 4000K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

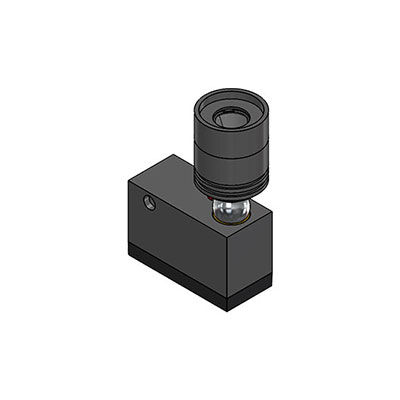

ionic sx standard fitting

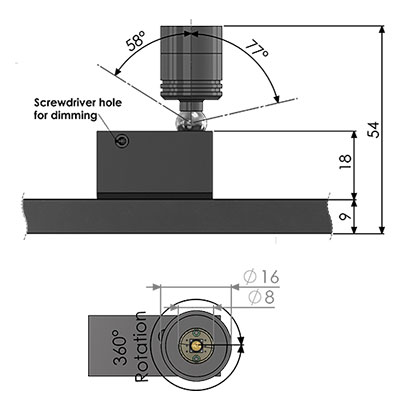

ionic sx standard fitting cad

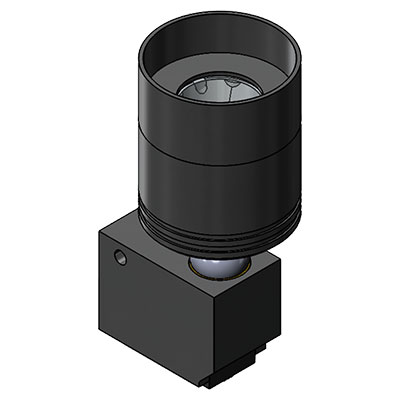

Ionic SX Fitting - Extended

The extended size SX snoot on the original Ionic base. Offers great light output in a discrete package with the ability to be locally or globally dimmed.

Product Information:

Available in both 3000K and 4000K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

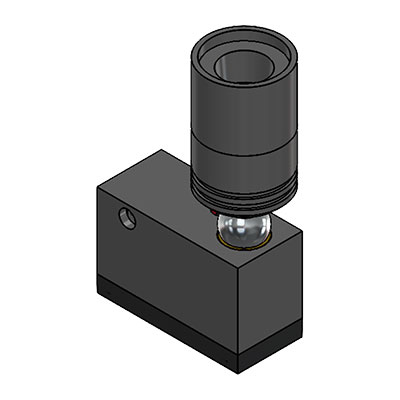

ionic sx extended fitting

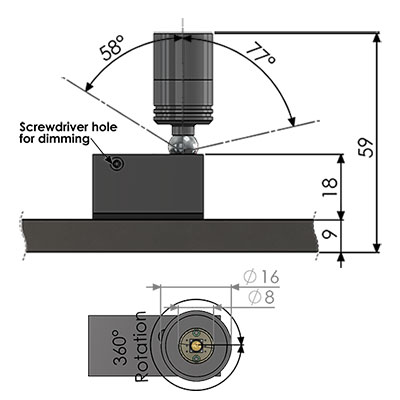

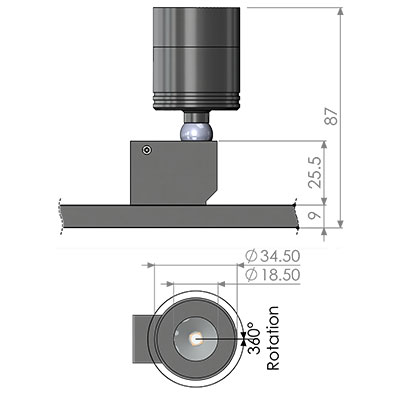

ionic sx extended fitting cad

Ionic SX Fitting - Directional

The directional SX snoot on the original Ionic base. Offers great light output in a discrete package with the ability to be locally or globally dimmed.

Product Information:

Available in both 3000K and 4000K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

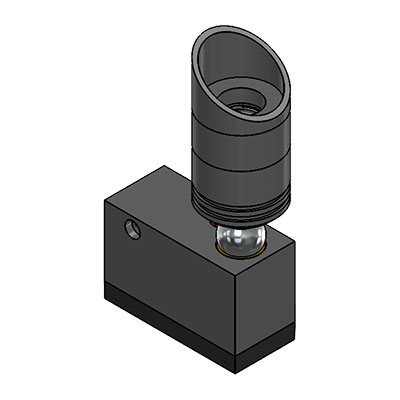

ionic sx directional fitting

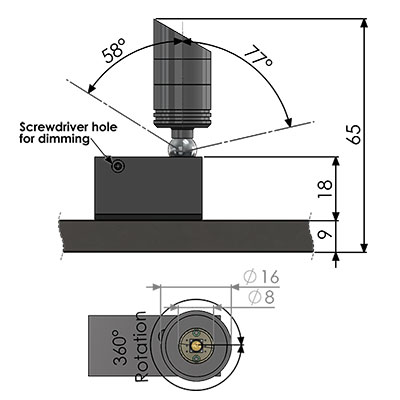

ionic sx directional fitting cad

Ionic SX Fitting - Standard with Honeycomb

The standard size SX snoot on the original Ionic base. Fitted with a honeycomb diffuser. Offers great light output in a discrete package with the ability to be locally or globally dimmed.

Product Information:

Available in both 3000K and 4000K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

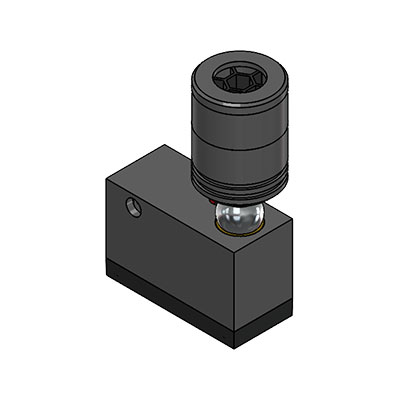

ionic sx standard fitting with honeycomb

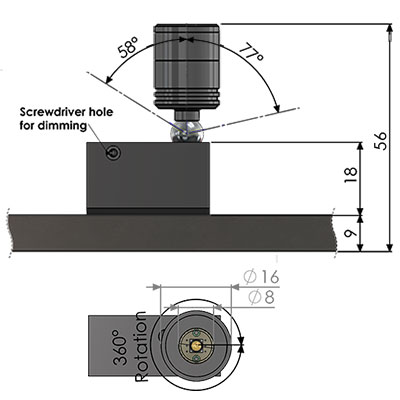

ionic sx standard fitting with honeycomb cad

Ionic SX Fitting - Extended with Honeycomb

The extended size SX snoot on the original Ionic base. Fitted with a honeycomb diffuser. Offers great light output in a discrete package with the ability to be locally or globally dimmed.

Product Information:

Available in both 3000K and 4000K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

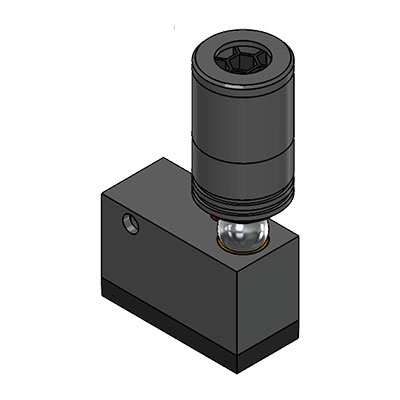

ionic sx extended fitting with honeycomb

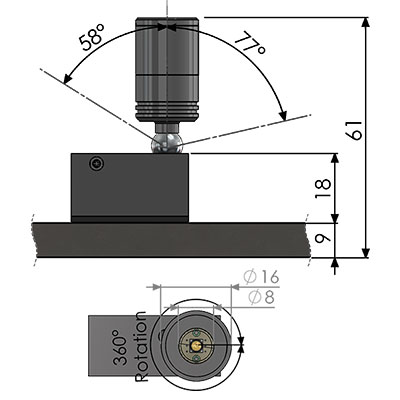

ionic sx extended fitting with honeycomb cad

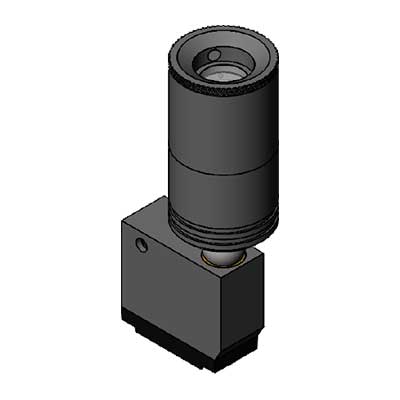

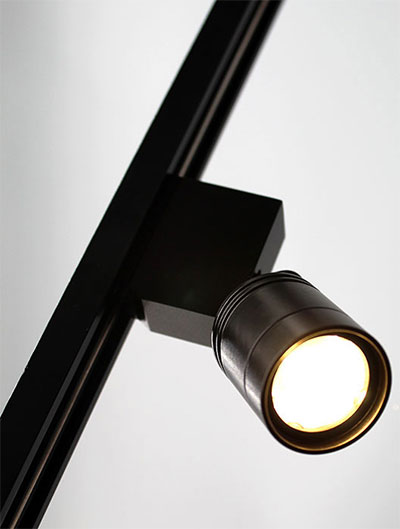

Ionic MX Fitting - Standard

The standard size MX snoot on a higher powered base. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

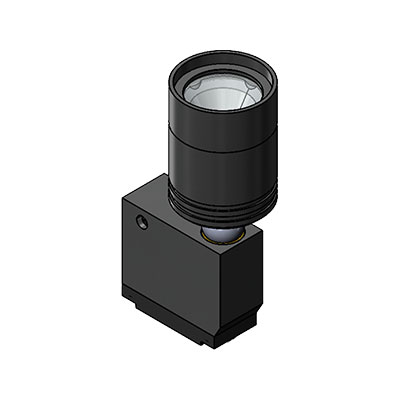

ionic MX standard fitting

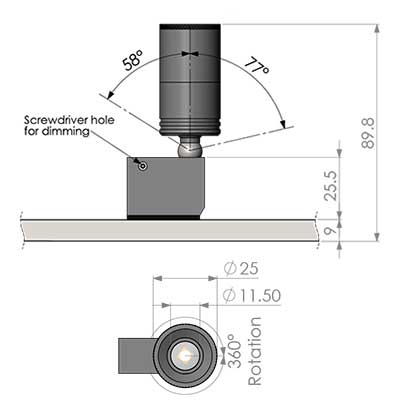

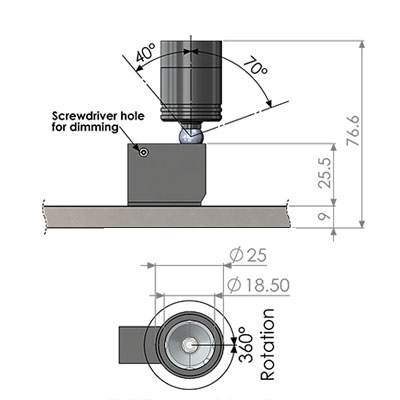

ionic MX standard fitting cad

Ionic MX Fitting - Extended

The extended size MX snoot on a higher powered base. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

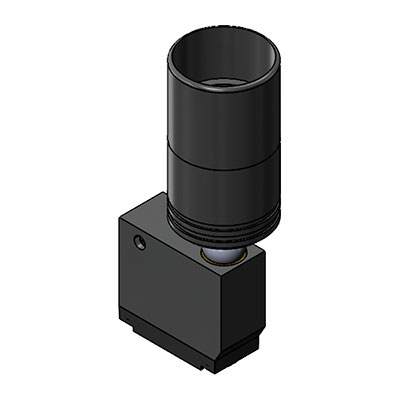

ionic MX extended fitting
ionic MX extended fitting cad

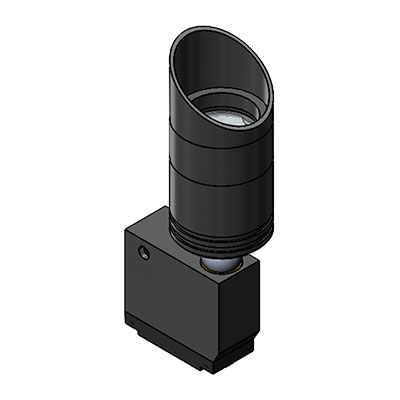

Ionic MX Fitting - Directional

The directional MX snoot on a higher powered base. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

ionic MX directional fitting
ionic MX directional fitting cad

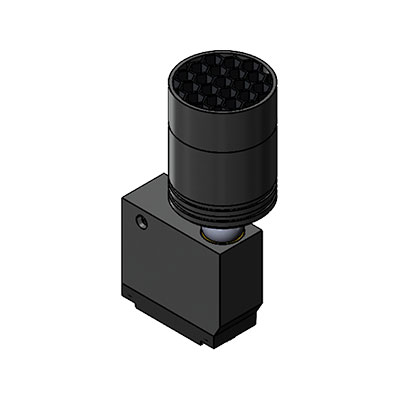

Ionic MX Fitting - Standard with Honeycomb

The standard sized MX snoot on a higher powered base. Fitted with a honeycomb diffuser. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

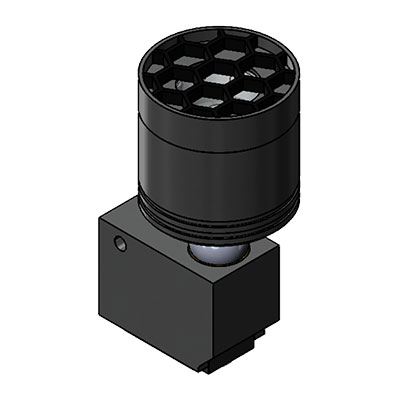

ionic MX standard fitting with honeycomb
ionic MX standard fitting cad

Ionic MX Fitting - Extended with Honeycomb

The extended size MX snoot on a higher powered base. Fitted with a honeycomb diffuser. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

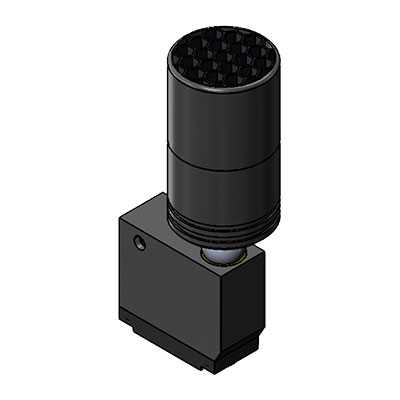

ionic MX extended fitting with honeycomb
ionic MX extended fitting cad

Ionic MX Fitting - Directional with Honeycomb

The directional MX snoot on a higher powered base. Fitted with a honeycomb diffuser. Offers greater light output than the SX range of fittings but with the same control options.

Product Information:

Available in 2700K, 3000K, 4000K & 5700K colour temperatures.

Manufactured from aluminium and finished in either anodised black or silver.

Ordering Codes:

See ordering codes tab above to view codes

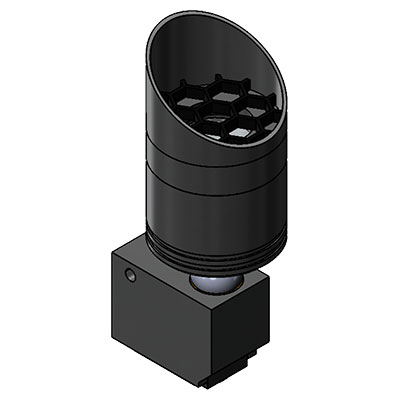

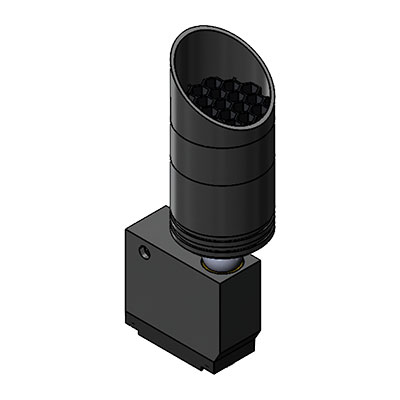

ionic MX directional fitting with honeycomb
ionic MX directional fitting cad

Please click the option buttons below to create your Ionic Fitting model number.

Ionic SX Fitting Configurations

Model Type

Colour Temp

Optics

Colour

Snoot

Honeycomb

Model Number:
Ionic MX Fitting Configurations

Model Type

Colour Temp

Optics

Colour

Snoot

Honeycomb

Model Number:
Notes:
If you require pricing or would like to discuss any special requirements please contact us.
ItemPart NumberOption Values
Mounting TrackUFO‐ION‐TR‐[LENGTH]-[COL]Specify colour options from BL ‐ Black SV ‐ Silver. Specify length required in metres. Max length available is 2.8m
Extending SnootUFO‐ION‐SNE‐[COL]Specify colour options from BL ‐ Black SV ‐ Silver
Directional SnootUFO‐ION‐SND‐[COL]Specify colour options from BL ‐ Black SV ‐ Silver
Honey CombUFO‐ION‐HCFor SX range (standard or extended options only) and MX range (all models)
Additional Lens OptionsUFO‐ION‐LENS‐[OPTIC]Specify lens optics from 16°, 23°, 36°, 61°, 80°, 45° x 20° oval, 20° x 50° oval.
Magnetic Bracket 45°UFO‐ION‐MAGB45‐[COL]Specify colour options from BL ‐ Black SV ‐ Silver
Magnetic Bracket StraightUFO‐ION‐MAGB‐[COL]Specify colour options from BL ‐ Black SV ‐ Silver
Power InUFO‐ION‐RPICBlack only
Driver Unit (with Dimming)UFO IONDR‐CV‐DC‐12‐18‐DAllows Global Dimming
Driver Unit (No Dimming)UFO IONDR‐CV‐DC‐12‐18‐NNo Global Dimming
End CapIONIC-RCECBlack only
Wall Clip (Screw in)IONIC-RCLICPBlack only
Ionic SX Fitting Specifications
 3000K Model4000K Model
Light SourceLED
Colour Temperature3000K4000K
Typical Luminous Flux50lm/W47lm/W
CRI96CRI95CRI
Drive Current300mA
Track Supply Voltage12V DC
Optics16° / 23° / 36° / 61° / 45° x 20° oval / 20° x 50° oval / 80°
FunctionalityGlobal dimming, local dimming or combination of both
LED Life50,000 hours
MaterialAluminum
FinishBlack or silver anodised with chrome magnetic ball
Ionic MX Fitting Specifications
 2700K Model3000K Model4000K Model5700K Model
Light SourceLED
Colour Temperature2700K3000K4000K5700K
Typical Luminous Flux50lm/W47lm/W
CRI98CRI96CRI95CRI91CRI
LED Wattage1.12W
Track Supply Voltage12V DC
Optics13.5° / 19° / 28°
FunctionalityGlobal dimming, local dimming or combination of both
LED Life50,000 hours
MaterialAluminum
FinishBlack or silver anodised with chrome magnetic ball
ItemDimming DriverNon-dimming Driver
Product CodeUFO IONDR-CV-DC-12-18-DUFO IONDR-CV-DC-12-18-N
DescriptionConstant voltage dimmable driverNon-dimming driver
Input Voltage Range12VDC12VDC
Rated Power18WPSU dependant
Output Current1.5AN/A
Output Voltage12V12V
Max. No. of Ionic Fittings per Driver10PSU dependant
FunctionalityPotentiometer dimmingNone
IP RatingIP20 - internal use onlyIP20 - internal use only
ProtectionSCP, OCP, OTPN/A
ConnectionScrew terminalScrew terminal
Dimensions146mm x 88mm x 40mm146mm x 88mm x 40mm
