UFO USA Website
UFO Licht Website Nova RGBW LED Light Sources

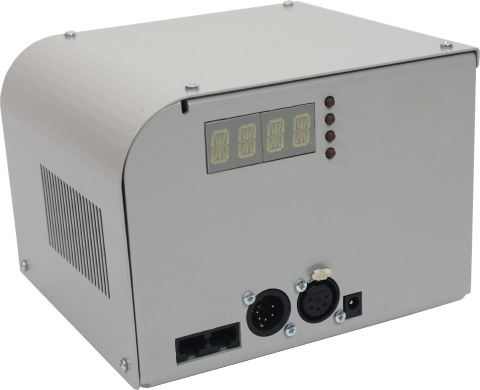

UFO Nova Light Source
High powered RGBW light output and full DMX control make the Nova an LED light source capable of competing with all traditional light source types.
Utilising industry standard DMX to control the unit's colour change effects, plus the option of adding a twinkle wheel and an RF remote control, this is the ultimate light source for powering decorative fibre optic effect lighting.
There are 2 twinkle wheel options available - the standard one which rotates continually and a sensor controlled one which rotates back and forth and has a blank segment to allow for full light output.
A 50,000 hour lamp life and cool quiet running ensure that maintenance costs are reduced to almost nil.
Fitted with a standard 30mm fibre port connector, this light source is suitable for both new installations and retro-fitting to existing fibre optic installations.
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
MODEL TYPE
COLOUR TEMP
EFFECT
REMOTE CONTROL
SENSOR
Model Number:
For the configuration of a twinkle wheel with sensor, the wheel is supplied with a cut out segment. The wheel in motion will give an uninterrupted twinkle by rotating backwards and forwards either side of the segment. When stop is selected the wheel will come to rest at the segment giving unobstructed white light output.
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fibre Type | Glass / PMMA |
| Material / Finish | Aluminium, powdercoated grey (RAL9006) |
| Dimensions (L x W x H) | 183mm x 178mm x 128mm |
| Weight | 1.91kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | DMX & manual dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 6 channels |
| Colour Change Functionality | DMX, manual & remote control |
| Effects Wheels Options & Functionality | Twinkle wheel controlled by DMX or manual operation. Available with or without sensor |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | Custom RGBW array |
| LED Array Power | 46W |
| LED Array Model | Luxeon 36 LED Array |
| LED Array Life (L70, B10) | 50,000 hours @ 25°C |
| White Colour Temperature Options | 6500K (standard) / 4000K / 3000K |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.2A @240Vac |
| Mains Voltage VA Rating | 50VA |
| External PSU Type | Meanwell, 24V, 2.5A, 60W |
| Motor Type | Rotalink 25C13/YS0LPSL3E 12V 60:1 |
| Fan Type | Sunon, 80mm, 22dBA |
| RF REMOTE CHARACTERISTICS | |
|---|---|
| RF Remote Frequency | 2.4GHz |
| RF Remote Range | 30m, depending on environment |
| RF Remote Power | 2 x AAA batteries (supplied) |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS0403021R5 | Weatherproof enclosure |
| OPTIONAL WALL MOUNTING PLATE |
|---|
