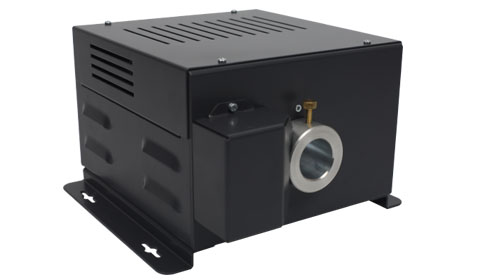

UFO Pulsar Light Source
The UFO Pulsar DMX is a powerful 130W RGBW light source with full integral DMX, 0-10V, 1-10V, manual dimming and RF control making this light source capable of exceeding all expectations.
Utilising industry standard protocols to control the unit's colour change effects, twinkle effects and dimming. This is the ultimate light source for illuminating fibre optic effect lighting when a crisp, controllable RGBW light is required.

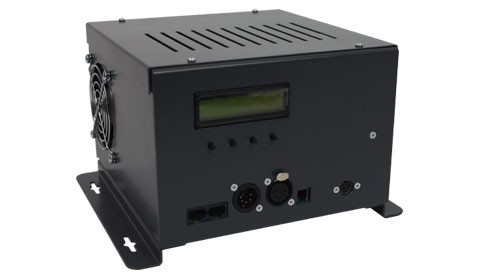

Features an LCD display which provides user feedback for ease of use. Fitted with a standard 30mm fibre port connector, this light source is suitable for both new installations and retro-fitting to existing fibre optic installations.
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fibre Type | Glass / PMMA |
| Material / Finish | Sheet steel, grey powdercoat (RAL7024) |

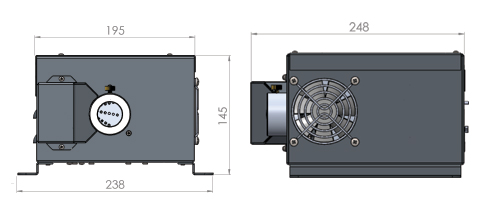

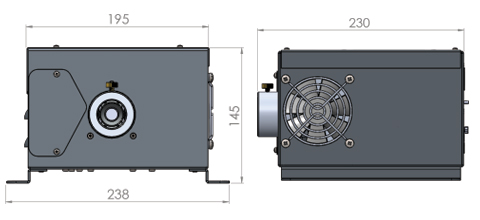

| Dimensions (L x W x H) | 207mm x 236mm x 145mm |
| Weight | 2.52kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 50° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Decorative Effects | Colour change & twinkle effect with full light option |
| Dimming Control | Integral DMX, 0-10V, 1-10V and manual dimming |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | RGBW |
| LED Array Power | Up to 130W |
| LED Array Life | 50,000 hours (typical) |
| Base White Colour Temperature | 6500K as standard 3000K & 4000K options subject to availability |
| Wavelength and Luminous Flux | Red: 618nm / 1600lm Green: 518nm / 3000lm Blue: 450nm / 650lm White: 4600lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Mains Supply Voltage | 100 - 250V AC, 50-60Hz |
| PSU Type | Desktop PSU with IEC power cord |
| PSU Output | 160W |
| Fan Type | Crossflow |
| Thermal Protection | On LED PCB thermistor |
| RF REMOTE CHARACTERISTICS | |
|---|---|
| RF Remote Frequency | 2.4GHz |
| RF Remote Range | 30m, depending on environment |
| RF Remote Power | 2 x AAA batteries (supplied) |
| ORDERING CODES | |
|---|---|
| UFO-PUL-DMX | Pulsar RGBW integral DMX, 0-10V, 1-10V & manual control |
| UFO-PUL-DMX-R | Pulsar RGBW integral DMX, 0-10V, 1-10V & manual control + RF remote |
| UFO-PUL-DMX-T | Pulsar RGBW integral DMX, 0-10V, 1-10V & manual control + twinkle wheel |
| UFO-PUL-DMX-T-R | Pulsar RGBW integral DMX, 0-10V, 1-10V & manual control + RF remote and twinkle wheel |
Note that as standard these light sources are supplied with a 6500K base white array. If you require either the 3000K or 4000K option please contact us to confirm availability.
