Sauna Uplight Kit
Kit Overview
With our fibre optic uplight kits you can subtly alter the ambience of a room at the flick of a switch.
The stainless steel pavers that are included in the kits can be set in floors, benches and skirting and used to cast scallops of warm white or colour-changing light across walls or flooring in saunas, spas, steam rooms and swimming pool areas.
The lack of electricity in the paver fittings also means that they are free from heat and completely safe to touch and walk on, whilst their stainless steel casing has been designed to last a lifetime in damp and humid areas.

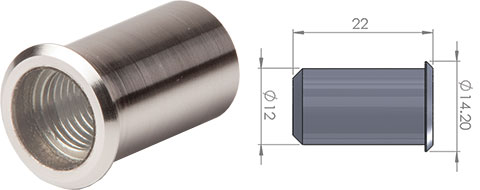

UFO Uplight Fittings
Kits are supplied with 4, 6 or 8 stainless steel paver fittings. Number supplied depends on the kit ordered.
The fitting diameter is 14mm and they require a 12mm cut out for installation.
Fibre Optic Harness
The harness is manufactured from 4mm diameter glass fibre for an extra bright lighting effect.
Light Source Options
The Cube-R or the Vega Slimline White Light
Whether you want a calming, static white light effect or would prefer the option to choose your own colour or even an exciting colour change effect, our light source choices have all bases covered.
Our Cube-R light source offers full colour change ability controlled either with the included remote control or by the units inbuilt buttons.
The Vega Slimline is a compact unit which outputs powerful static white light. The light source body has an inbuilt dimmer allowing you to raise or lower the light level to suit your mood.
Both light sources offer full DMX control and the Vega also includes 0-10V control so they can easily be used as part of a more advanced lighting setup.
The Cube R
Add a splash of colour to your lighting by upgrading to one of our Cube light sources. Features full RGBW light output and is supplied with a touch sensitive remote control unit to choose your ideal colour with a quick tap of your finger. Also offers full DMX control for more advanced systems.
Port Connector
30mm diameter
Fibre Type
Glass / PMMA
Supply voltage
110-240 VAC, 47-63Hz
Power Supply
External 24V DC, 47-63Hz, 2.5A
Mains Running Current
0.3A max.
LED power
35W
LED type
RGBW
LED Lifespan
50,000 hours in ambient 25°C
Control / Effects
Colour change with DMX, manual control and remote control
DMX
User addressable 6 channel (0-255)
Enclosure material / colour
Aluminium, powdercoated grey
Dimensions
(L)110mm x (W)110mm x (H)95mm
Weight
607g
The Vega Slimline
This powerful LED light source outputs static white light only and offers complete manual control over dimming levels. For advanced use it can also be controlled by either DMX or 0-10V systems.
Port Connector
30mm diameter
Fibre Type
Glass / PMMA
Supply voltage
110-240 VAC, 50-60Hz, 1.8A
Power Supply
External 24V DC, 2.5A, 60W max.
LED power
Max. 20W
LED type
White light LED
TH equivalent output
120W
LED Lifespan
50,000 hours in ambient 25°C
Control / Effects
Dimming via DMX, 0-10V or manual control
DMX
User addressable 1 channel dimming
0-10V control
0-10V DC receiving
Enclosure material / colour
ABS, grey
Dimensions
(L)222mm x (W)114mm x (H)75mm
Weight
920g
Ordering Codes
| Fibre Tail Lengths & Sizes | End Fittings | Order Code (with Vega Light Source) | Order Code (with Cube Light Source) |
|---|---|---|---|
| 4 x 3 metre length - 4mm glass fibre | 4 x stainless steel fittings | SUL-4-VS | SUL-4-CR |
| 6 x 4 metre length - 4mm glass fibre | 6 x stainless steel fittings | SUL-6-VS | SUL-6-CR |
| 8 x 4 metre length - 4mm glass fibre | 8 x stainless steel fittings | SUL-8-VS | SUL-8-CR |
