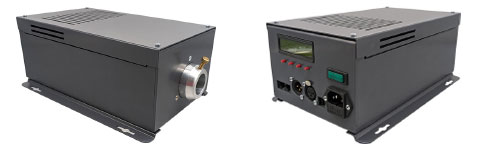

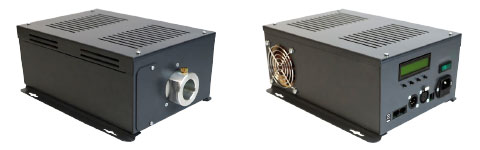

UFO Sirius S LED Light Source

Introducing the Sirius S - an upgraded, more powerful and more efficient version of our best-selling Sirius light source.
For PMMA fibre applications, the Sirius S is the brightest light source in the UFO range. The enhanced technology in the Sirius S means it is much brighter than the original Quasar PMMA model.
High power output combined with a choice of popular colour temperatures makes this light source suitable for multiple lighting tasks.
The Sirius S is dimmable via industry standard DMX, 0-10V or 1-10V controllers and also features an in-built manual dimming function for smaller scale installations.
This new light source features an easy to use control panel complete with an LCD display - so selecting and setting control modes is simplified.
Fitted with a standard 30mm fibre connector, this unit is equally suited to new projects or for retro-fitting to existing fibre optic installations where a replacement or higher powered light source may be required.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fibre TypeGlass / PMMA
Material / FinishAluminium - powdercoated grey (RAL7024)

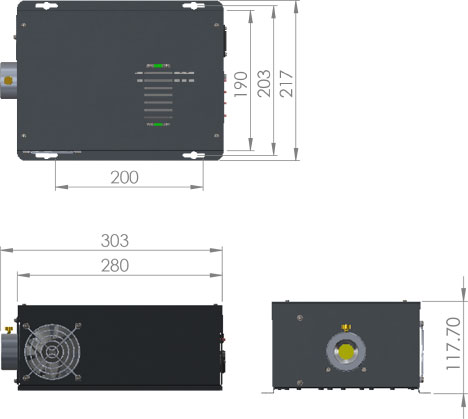

Dimensions (L x W x H)280mm x 190mm x 118mm
Weight2.89kg
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°
Max. Ambient Temperature45°
LIGHTING & CONTROL INFORMATION
Control Functionality0-10V / 1-10V / DMX / Manual Dimming
Note that manual dimming is controlled by push buttons on the unit's body. See accessories section below for other option.
DMX FunctionalityUser addressable to 512
DMX Channels2 channels
LED ARRAY DATA
LED Array TypeWhite light - 18mm LED CoB
LED Array Power75W
LED Array ModelBridgelux V18
LED Array Life (L70, B10)>50,000 hours (typical)
LED ARRAY OPTIONS
2200K>80 CRI10117lm
2700K>80 CRI12517lm
3000K>80 CRI12772lm
2200K>90 CRI8211lm
2700K>90 CRI12113lm
3000K>90 CRI12361lm
4000K>90 CRI12608lm
For Lower CRI 4000K, as well as 5500K OptionsPlease see the original Sirius light source model which offers these CCT options
ELECTRICAL CHARACTERISTICS
Supply Voltage100 - 305V AC
Mains Running Current0.4A @240V AC
Mains Voltage VA Rating92VA
Fan TypeSunon 80mm - 28dBA
ACCESSORIES

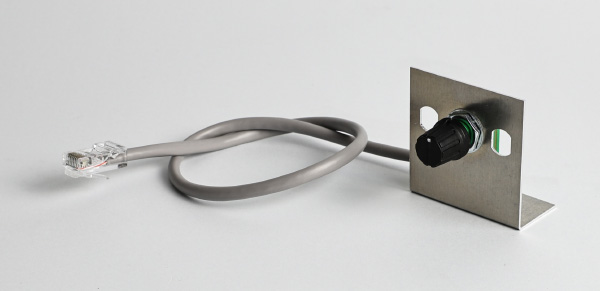

Remote Potentiometer
Product Code: UFO SIRS-RPOT		A potentiometer mounted on a 1.2m long flying lead. This allows for manual dimming when the control panel is inaccessible. Note that when the flying lead is connected the RJ45 port the light source cannot be controlled by either DMX or 0-10V options.
CONFIGURATIONS Click the option buttons below to create the fitting model number

MODEL TYPE

COLOUR TEMPERATURE

CRI

EFFECTS

Model Number:
Product Datasheet
User Manual
