LED Light Fittings

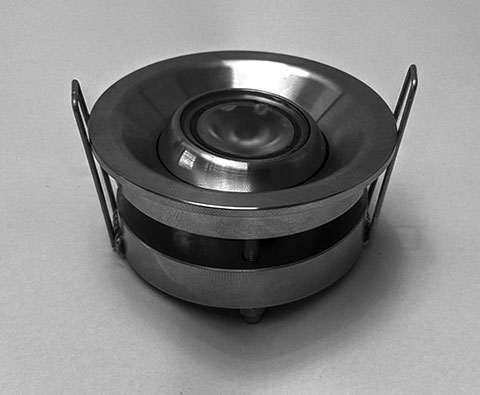

UFO LD10 LED Downlight Fitting

An IP66 rated recessed downlight with a lockable eyeball which is held in place with spring clips.
The UFO LD10, which has a lockable, tilting eyeball which offers up to 107° adjustment, comes with a choice of narrow, medium and wide beam options to allow you to direct the light exactly where it is needed. Fitted with springs to allow easy installation into the mounting surface.
Available in a range of colour temperatures with a high colour rendition and multiple methods of dimming, the aluminium fitting is ideally suited for indoor use in residential and architectural sectors amongst others.
UFO LD10 DOWNLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIndoor use only
Material316 Stainless Steel
Available FinishesFlange and body can each be chosen from black, white, silver or custom RAL colour
Dimensions61.7mm Diameter x 27mmmm Length, not including gland
Securing MethodSecured through surface with springs
UFO LD10 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt107° with lockable head
UFO LD10 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Colour Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >98
3000K: >98
4000K: >97
5700K: >91
LED Luminous Efficacy(based on 19° lens and 350mA driver)
2700K: 67lm/W
3000K: 65lm/W
4000K: 72lm/W
5700K: 89lm/W
Driver TypeConstant Current LED Driver Required
UFO LD10 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LD10 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Colour Temp

Flange

Eyeball

Model Number:
Notes:
Please state RAL number for custom colours
