UFO LD9 LED Downlight Fitting

An adjustable, recessed LED downlight fitting with choice of colour temperatures and optics.
The UFO LD9, which can tilt up to 65°, comes with a choice of narrow, medium and wide beam options to allow you to direct the light exactly where it is needed. Fitted with springs to allow easy installation into the mounting surface.
Available in a range of colour temperatures with a high colour rendition and multiple methods of dimming, the aluminium fitting is ideally suited for indoor use in residential and architectural sectors amongst others.
Product Datasheet
Quickstart Guide
Photometric Data

Relevant data for the fitting can be downloaded or viewed below. The download pack includes PDF, IES and LDT files.

Please use the selectors below to configure the data you require.

Note that data for the 5700K variants are currently unavailable for download. Please contact us if you require this.



Download Full Pack (.zip file)
UFO LD9 DOWNLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminium
Available FinishesBlack body with black, white, silver or custom RAL coloured bezel

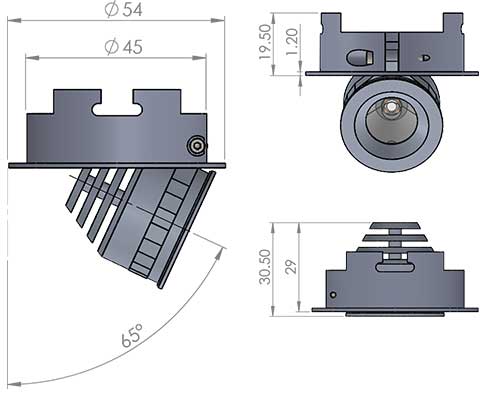

Dimensions54mm Diameter x 30.5mm Length
Securing MethodSecured through surface with springs
UFO LD9 DOWNLIGHT / ARTICULATION
Tilt65°
UFO LD9 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Colour Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >98
3000K: >98
4000K: >97
5700K: >91
LED Luminous Efficacy(based on 19° lens and 350mA driver)
2700K: 67lm/W
3000K: 65lm/W
4000K: 72lm/W
5700K: 89lm/W
Driver TypeConstant Current LED Driver Required
UFO LD9 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LD9 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Colour Temp

Flange

Body

Model Number:
Notes:
Please state RAL number for custom flange colours
