LED Light Fittings

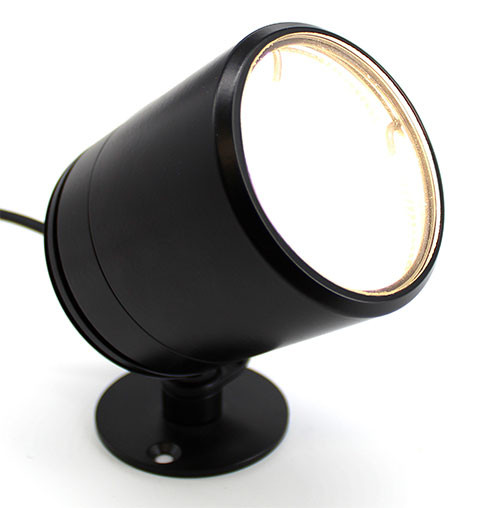

A larger-sized surface mount spotlight. Supplied with mounting bracket.

Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. This fitting is also available for use outdoors and is suitable for use where access above or below the mounting surface is not available.

The power cable can be threaded through the base of the fitting if required to create a neat finish.

Of course, like for all models in this range there are also high CRI LED array options available making it very suitable for use in display lighting applications. The XIM & XTM module options make for a very high powered spotlight fitting.

UFO LM3 SPOTLIGHT / TECHNICAL DATA
Light sourceWhite Light LED
Colour Temperature Options2700K or 3000K
Module Options ConsumptionXicato XIM or Xicato XTM
Control OptionsXIM modules dimmed by DALI, 0-10V or Bluetooth
XTM modules dimmed by DALI, 0-10V or mains
IP RatingIP66 - suitable for indoor or outdoor use
Mounting MethodSurface Mount

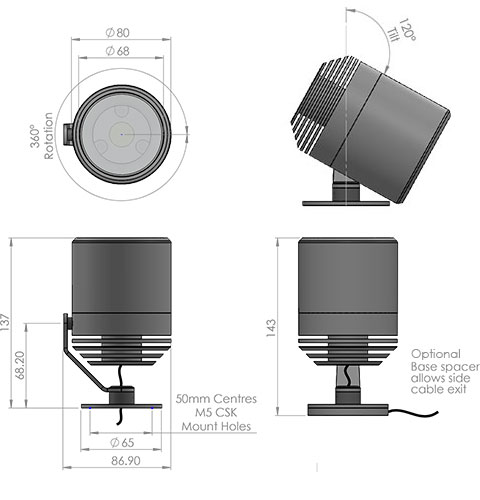

Articulation360° Rotation / 120° Lockable Tilt
LED Life50,000 hours
Beam Angle Options9mm LED - 12° / 20° / 23° / 35°
19mm LED - 21° / 25° / 28° / 41° / 62°
MaterialAluminium
Available FinishesBlack, White or Custom RAL
UFO LM3 SPOTLIGHT / XIM MODULE
Power Requirements48V Constant Voltage
Module Options9mm LED - 80CRI - 1300lm - 18.8W
9mm LED - 95CRI - 700lm - 12.5W
19mm LED - 80CRI - 1300lm - 12.6W
19mm LED - 95CRI - 1300lm - 17.2W
UFO LM3 SPOTLIGHT / XTM MODULE
Power RequirementsConstant Current
Module Options9mm LED - 80CRI - 13000lm - 15.6W
9mm LED - 95CRI - 930lm - 15.2W
9mm LED - 95CRI - 1300lm - 23.6W
19mm LED - 80CRI - 2030lm - 13.9W
19mm LED - 80CRI - 2700lm - 19.9W
19mm LED - 95CRI - 2140lm - 19.9W
UFO LM3 SPOTLIGHT / ACCESSORIES
Option 1Honeycomb Louver
Option 2Diffuser Lens

Note that both options can be fitted together if required.

Configurations

Please click the option buttons below to create your fitting model number.

Model Type

Optics

Colour Temp

Finish

LED Module

Accessories

Model Number:
Notes:
Please state RAL number for custom flange colours
