LED Light Fittings

UFO LM4 LED Spotlight Fitting

A surface mount spotlight. Supplied with mounting bracket.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. This fitting is perfect for use indoors and is suitable for use where access above or below the mounting surface is not available.
Our spotlight fittings are suitable for use in a variety of different applications and are the ideal solution for functional interior lighting.
Of course, all options in this range also feature high CRI options and tey are highly effective when used in museums, galleries and retail display enivironments.
UFO LM4 SPOTLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIP20 rated for indoor use only
MaterialAluminium
Available FinishesBlack as standard. Custom RAL finish available to special order

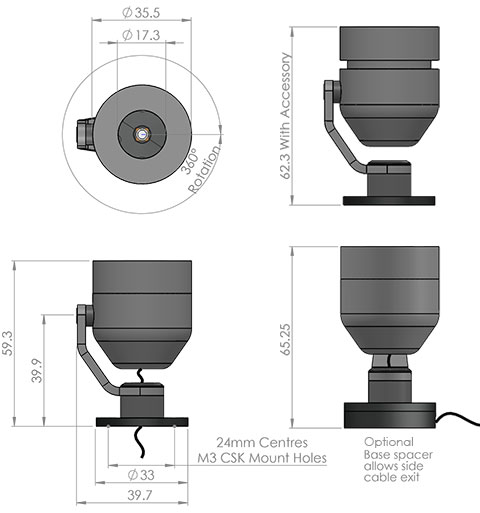

Dimensions35.5mm Diameter x 59.3mm Length
Securing MethodSurface mount, secured with screws
UFO LM4 SPOTLIGHT / ARTICULATION
Rotation360°
Tilt118° lockable
UFO LM4 SPOTLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm star board
LED Life (L70, B10)>50,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Colour Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >98
3000K: >98
4000K: >97
5700K: >91
LED Luminous Efficacy(based on 19° lens and 350mA driver)
2700K: 67lm/W
3000K: 65lm/W
4000K: 72lm/W
5700K: 89lm/W
Driver TypeConstant Current LED Driver Required
UFO LM4 SPOTLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LM4 SPOTLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
UFO LM4 SPOTLIGHT / MOUNTING ACCESSORIES
Side Cable Base Spacer
Product Code: UFO-LM-SCBS
Allows the cable to exit from the side of the mounting foot rather than straight through the back face.
UFO LM4 SPOTLIGHT / ACCESSORIES
Option 1Honeycomb Louver
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Colour Temp

Finish

Accessories

Model Number:
Notes:
Please state RAL number for custom colour
