LED Light Fittings

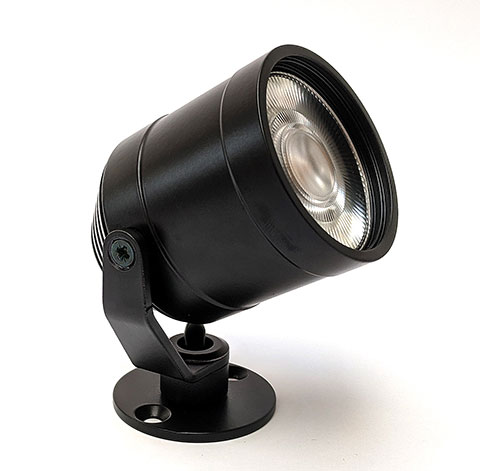

A small surface mount spotlight. Supplied with mounting bracket.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. This fitting is suitable for indoor use and is suitable for use where access above or below the mounting surface is not available.
The power cable can be threaded through the base of the fitting if required to create a neat finish.
Of course, like for all models in this range there are also high CRI LED array options available making it very suitable for use in display lighting applications. The XIM & XTM module options make for a very high powered spotlight fitting.
| UFO LM5 SPOTLIGHT / TECHNICAL DATA | |
|---|---|
| Light source | White Light LED |
| Colour Temperature Options | 2700K or 3000K |
| Module Options Consumption | Xicato XIM or Xicato XTM |
| Control Options | XIM modules dimmed by DALI, 0-10V or Bluetooth XTM modules dimmed by DALI, 0-10V or mains |
| IP Rating | IP20 - suitable for indoor use |
| Mounting Method | Surface Mount |
| Articulation | 360° Rotation / 120° Lockable Tilt |
| LED Life | 50,000 hours |
| Beam Angle Options | 9mm LED - 12° / 24° / 38° 19mm LED - 31° / 33° / 46° |
| Material | Aluminium |
| Available Finishes | Black, White or Custom RAL |
| UFO LM5 SPOTLIGHT / XIM MODULE | |
|---|---|
| Power Requirements | 48V Constant Voltage |
| Module Options | 9mm LED - 80CRI - 700lm - 10.1W 9mm LED - 95CRI - 700lm - 12.5W |
| UFO LM5 SPOTLIGHT / XTM MODULE | |
|---|---|
| Power Requirements | Constant Current |
| Module Options | 9mm LED - 80CRI - 720lm - 7.4W 9mm LED - 80CRI - 965lm - 10.9W 9mm LED - 95CRI - 500lm - 7.2W 9mm LED - 80CRI - 700lm - 10.6W 19mm LED - 80CRI - 1105lm - 7.2W 19mm LED - 80CRI - 1490lm - 10.6W 19mm LED - 95CRI - 1240lm - 9.6W |
| UFO LM5 SPOTLIGHT / ACCESSORIES | |
|---|---|
| Option 1 | Honeycomb Louver |
| Option 2 | Diffuser Lens |
Note that both options can be fitted together if required.
Configurations
Please click the option buttons below to create your fitting model number.
Model Type
Optics
Colour Temp
Finish
LED Module
Accessories
Please state RAL number for custom flange colours
