UFO MBL3 LED Downlight Fitting

The UFO MBL3 fittings features a sleek design and the latest magnetic articulation for 360° rotation.
Featuring a cleverly designed magnetic ball joint that provides complete freedom of movement, allowing the luminaire to be fully rotated and tilted to point the light in almost any direction.
The MBL3 is mains, local pot and 1-10v dimmable using a UFO approved dimmer switch.

Mounting Foot Choice

As standard the MBL3 is supplied with a round foot which features a decorative cover to hide the mounting screws. Optionally, a rectangular variant is also available which allows for a greater angle of tilt.

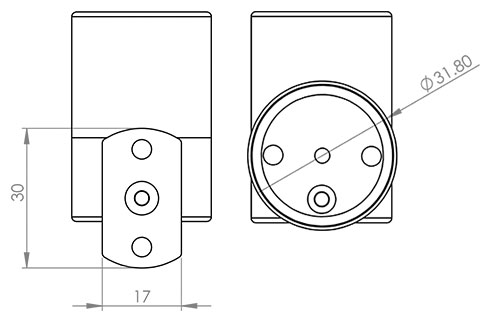

The image below shows the 2 options - rectangular on the left and round on the right.
UFO MBL3 DOWNLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminium
Available FinishesBlack, White, Silver or Custom RAL

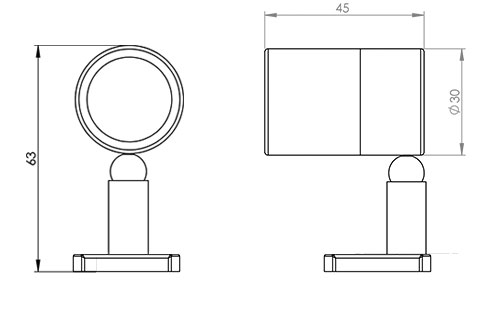

DimensionsBase: 30mm diameter x 5mm
Head: 30mm diameter x 45mm
Base Height: 25mm
Weight78g
Securing MethodSecured through surface with screws
UFO MBL3 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90°
UFO MBL3 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Star PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA, 500mA or 700mA
Power Consumption1W @ 350mA, 1.5W @ 500mA, 2.1W @ 700mA
Colour Temperature Options2700K, 3000K, 4000K
CRI>95
Lumen OutputSee photometric data below
LED Luminous EfficacySee photometric data below
Driver TypeConstant Current LED Driver Required
UFO MBL3 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics7° / 9° / 21°
UFO MBL3 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Colour Temp

Colour

Foot Type

Model Number:
Notes:
Please state colour for custom aluminium finish.

Photometric Data

Photometric are shown below for one specific & popular configuration of the fitting. We can provide details of other configurations on request, so please contact us for information regarding your particular requirements.
IES Data LDT Data
The data presented in this document is generated using a popular combination of colour temperature and lens using a 350mA driver. We can provide data for all combinations of colour temperatures, drivers and lens options available for a specific fitting - please contact us for these details.
When information is requested for a specific combination there may be a short delay in supplying this as it may require us to set up a testing procedure for that particular combination. We will advise at the time of request how long it will take to supply the data.
Power figures provided have been generated based on the voltage and current to the fitting only and do not allow for any losses due to the driver. We measure this way because our fittings can be used with a variety of different drivers and are loaded differently. These driver variations affect the power factor and efficiency which distorts the figure provided for power consumption.
UFO recommend that a tolerance of +/- 5% should be applied to all figures presented on these datasheets due to variances that can occur between different components. For example there may be slight ambient temperature variations during measuring or some slight variations in LED modules through the bin.
