UFO Carina Tuneable LED Light Source

The innovative Carina tuneable LED light source is perfect for situations where total control is required over the light output from fibre optic fittings.
The Carina allows dimming as well as for the the colour temperature to be varied between two values. See the table opposite for the array options available.
Couple this functionality with a choice of interchangable control modules - manual control via in-built potentiometers, DALI or 0-10V / 1-10V control - and you have the ultimate in contrallable fibre optic light output.
The Carina offers high CRI and bright white light output which is perfect for any display lighting application.

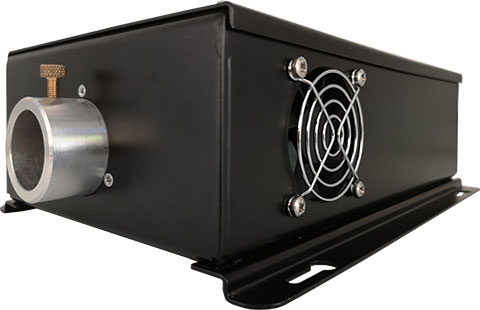

Fitted with a standard 30mm fibre connector, this unit is equally suited to new projects or for retro-fitting to existing fibre optic installations where a replacement light source may be required.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fibre TypeGlass / PMMA
Material / FinishAluminium - powdercoated grey (RAL7024)

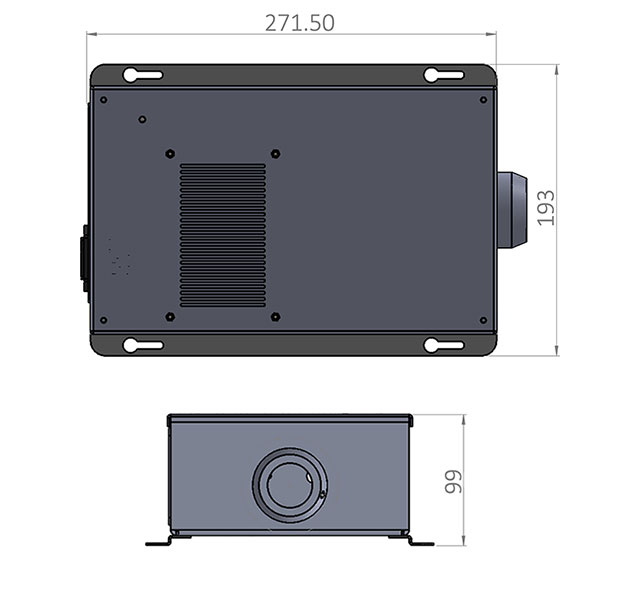

Dimensions (L x W x H)280mm x 193mm x 99mm
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°
Max. Ambient Temperature45°
LIGHTING & CONTROL INFORMATION
Control Functionality0-10V / 1-10V / DALI / Manual
ControlsTuneable colour temperature / Dimming
LED ARRAY DATA
LED Array TypeBridgelux white light
LED Array Power18W
LED Array Life (L70, B10)>50,000 hours (typical)
Tuneable CCT, CRI &
Lumen Output Options		2700K - 5000K @ >90 CRI / 1742-(2001) lm
2700K - 5000K @ 98CRI / 1510-(1762) lm
ELECTRICAL CHARACTERISTICS
Supply Voltage110 - 240V AC
MANUAL CONTROL MODULE

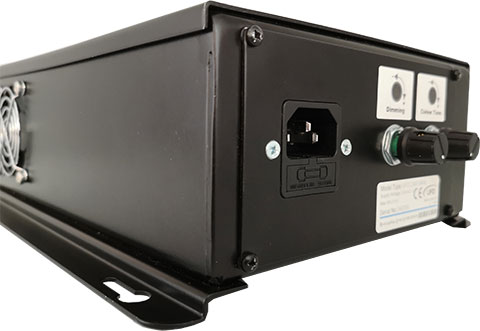

Has 2 potentiometers mounted on the units body - 1 to control dimming and 1 to control CCT output
DALI-2 DT8 CONTROL MODULE
DALI2 DT8 certified
Control of colour temperature and intensity
Compatible with industry standard DALI2 DT8 devices
Commission/manage lighting fixtures via any DALI2 certified controller
0-10V / 1-10V CONTROL MODULE
0-10V and 1-10V control protocol
Control of colour temperature and intensity
Compatible with industry standard 0-10V current sourcing and 1-10V current sink wired control devices
Dim to off hysteresis with turn off at 0.85V and tun on at 0.95V
