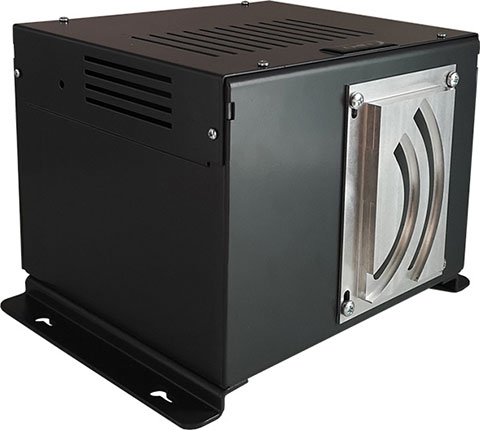

UFO Comet Light Source
The UFO Comet Light Source. Extremely high powered light output and full DMX, 0-10V, 1-10V, manual control and DALI (via an optional interface) make this an LED light source unparalleled in its light output and control capabilities.
The use of a custom dual slotted common end makes this innovative light source suitable for programming fibres, shooting star effects, special lighting effects, water effects, chasing effects and firework effects.
Utilising industry standard protocols to control the unit's colour change, twinkle and dimming effects. The Comet light source is dimmable and you can also specify either a 10 segment colour change, a twinkle, or a dual effect wheel to allow for decorative effects. This is the ultimate unit for illuminating decorative fibre optic effect lighting. Features an LCD display which provides user feedback for ease of use.
Note that the Comet is a specialist light source which, in most use cases, will require input from UFO to design the twinkle wheel and populate the common end in the correct manner for your specific application. Please contact us for more information.
| GENERAL INFORMATION | |
|---|---|
| Fibre Type | Glass / PMMA |
| Port Connector | Custom dual slotted |
| Material / Finish | Sheet steel, grey powdercoat (RAL7024) |

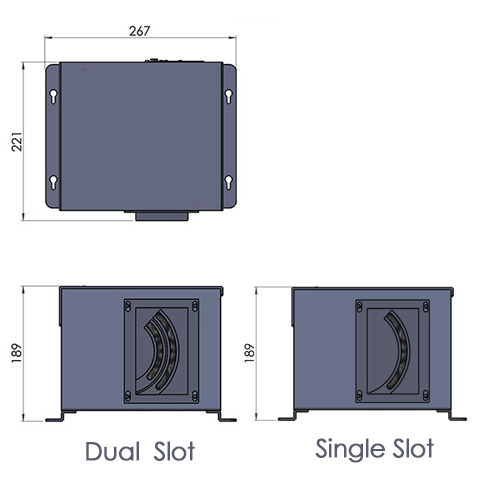

| Dimensions (L x W x H) | 207mm x 265mm x 186mm |
| Weight | Light Source: 3.2kg / PSU: 1.3kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10° |
| Max. Ambient Temperature | 45° |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Decorative Effects | Control over dimming, colour change effects or twinkle effects. Supports one built in effect wheel. The slotted common end allows fibre to be inserted in such a way to allow creation of specialist lighting effects such as shooting stars, fireworks and light chasing effects. The Comet can be specified with single or dual row common end. The single row common end allows for brighter light output as all light is directed straight at it. The dual row common end allows for more fibre to be inserted but the light is slightly dimmer due to being shared over both rows. |
| Control | DMX, 0-10V, 1-10V, manual or DALI (via optional interface) |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White Light |
| LED Array Life | 50,000 hours (typical) |
| LED Power | 60W |
| Colour Temperature | 5000K |
| CRI | >80 |
| Typical Luminous Flux | 5400lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Mains Supply Voltage | 100 - 240V AC, 50-60Hz |
| PSU Type | Desktop PSU |
| PSU Output | 48V DC, 96W |
| Fan Type | Crossflow |
| Thermal Protection | On LED PCB thermistor |
