White LED Light Sources

UFO Sirius Aqua LED Light Source

Featuring full IP67 ingress protection combined with extremely high power output.
This light source is suitable for multiple lighting tasks where traditionally metal halide units situated in IP enclosures have been employed. Almost silent in operation, the Sirius Aqua outputs light which is around 20% brighter than a 150W metal halide lamp.
The Sirius Aqua has an inbuilt manual dimmer located behind a protective panel, and dimming is also controllable via either DMX or 0-10V.
With a standard 30mm fibre port connector, this illuminator is equally suited to new projects or for retro-fitting to existing fibre optic installations - particularly for separate feed light sources using the optional interface.
Please note that although this light source is fully IP67 rated and can be used in wet/outdoor areas, it is not suitable for submersion in water and it should not be buried underground.

Sea Water & Saline

Please be aware that UFO will not specify, supply or install this light source for use in any area where corrosion or damage from saline may occur. This includes near the sea, on ships or in any other areas where the light source would be in an unprotected area. Damage caused by salt water due to improper, unprotected siting of the light source will void any and all UFO warranties on the product. UFO strongly recommend that the light source is not installed in any location where such damage may occur.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fibre TypeGlass / PMMA
Material / FinishHard anodised aluminium)

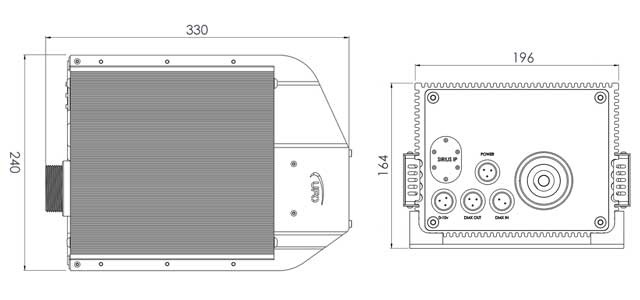

Dimensions (L x W x H)330mm x 240mm x 164mm
Weight6.46kg
Operating EnvironmentOutdoor use - IP67
It is imperative that a gap of 200mm (8") is left around the unit. This is to allow air to circulate and prevent overheating. The location must have free ventilation and must not have an ambient temperature higher than that specified for the unit.
Min. Ambient Temperature-10°
Max. Ambient Temperature50°
LIGHTING & CONTROL INFORMATION
Control Functionality0-10V / DMX / Manual Dimming
DMX FunctionalityUser addressable to 512
DMX Channels3 channels
LED ARRAY DATA
LED Array TypeWhite light
LED Array Power90W
LED Array ModelLED engine LZP 24 die emitter
LED Array Life (L70, B10)>36,000 hours (typical)
Cool White Option5500K / 75CRI / 5700lm
Studio White Option5300K / 88CRI / 4650lm
Neutral White Option4000K / 82CRI / 5300lm
Warm White Option3000K / 83CRI / 4650lm
ELECTRICAL CHARACTERISTICS
Supply Voltage90-264Vac
Mains Running Current0.42A @240Vac
Mains Voltage VA Rating100VA
External PSU TypeMeanwell, 24VDC, IP67, Type HL Driver
Fan Typeebm-papst, 80mm, IP68, 32dBA
AVAILABLE ACCESSORIES
PS-IP-AW-24-120-UK
PS-IP-AW-24-120-EU
PS-IP-AWB-24-100-US
24V 120W IP67 PSU, IP Connector & Cable Assembly (UK, EU or USA options available)
SF-IPSI-AW-CW-NSeparate Feed Interface - complete with 2m cable & IP connector Datasheet
AC-CBL-2-DMX-UKEU
AC-CBL-2-DMX-US
DMX Cable Assembly - complete with 2m cable & IP connector (UK/EU or USA options)
AC-CBL-2-10V-UKEU
AC-CBL-2-10V-US
0-10V Cable Assembly - complete with 1.25m cable & IP connector (UK/EU or USA options)
RE-IPSI-AW-CWD-NSirius Aqua Remote Control Datasheet
