Downlight Fittings For Fibre Optics

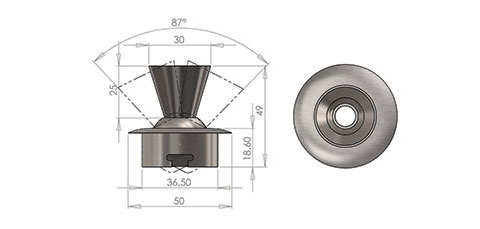

UFO 10DA Downlight Fitting

An adjustable downlight fitting with cone shaped trumpet, secured through the mounting surface with spring clips.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
316 stainless steel version is suitable for use in wet areas and is special order only so is subject to extended lead times.
TECHNICAL INFORMATION
Lens18mm biconvex clear focusing lens
Focus Range40° - 75°
Rotation & Tilt360° rotation / 28° tilt
MaterialAluminium, Stainless Steel (special order only)
Available FinishesAluminium: black, white or natural
Chrome finish also available subject to availability
Stainless Steel: natural
WeightAluminium: 55.1g
Mounting MethodRecessed, secured with springs
Mounting Hole Size440mm
Ferrule SizeM10 or 8mm smooth
Fibre Sizes2mm to 8mm
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Material

Finish

Ferrule

Model Number:
