Hermetic Fittings For Fibre Optics

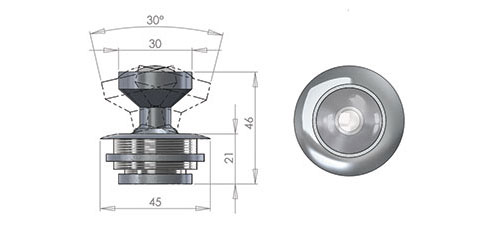

UFO 28H Hermetic Fitting

This hermetic downlight fitting allows an airtight seal to be maintained within a display case when using fibre optics.
These fittings are made from aluminium and the air seal is maintained by a series of three o-rings around the flange, eyeball and ferrule. The ferrule is tightened fully onto the fitting and the focus adjustment is made using the trumpet. The further onto the ferrule the trumpet is screwed, the wider the beam. The tight tolerances attained during manufacture help ensure many years of reliable operation.
With a directional and focusable trumpet, the light beam can be adjusted to perfectly light the desired object.
TECHNICAL INFORMATION
Lens26mm clear focusing lens
Focus Range40° - 65°
MaterialAluminium
Available FinishesBlack, white, chrome or natural
Weight50g
Mounting MethodRecessed, secured by retaining ring
Mounting Hole Size38mm
Ferrule SizeM10
Fibre Sizes2mm to 8mm

Chrome finish subject to availability, is special order and an extended lead time may be required.

CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Material

Finish

Ferrule

Model Number:
