Downlight Fittings For Fibre Optics

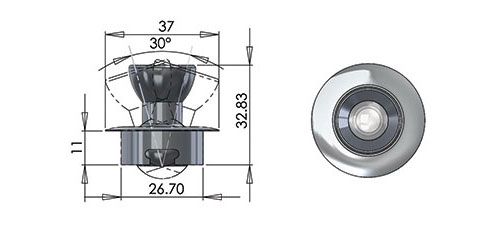

UFO 9D Downlight Fitting

A mini adjustable downlight fitting with trumpet, secured through the mounting surface with spring clips.
Available in a range of finishes, this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
Two trumpet and lens options allow for either wide or narrow angle light focus.
TECHNICAL INFORMATION
LensAvailable with both wide (18mm biconvex) and narrow (13mm domed) clear focusing lens
Focus RangeWide angle lens: 70° - 120°
Narrow angle lens: 25° - 65°
MaterialAluminium
Available FinishesNatural aluminium, black, white or natural
Weight20.7g
Mounting MethodRecessed, secured with springs
Ferrule SizeM8
Fibre Sizes2mm to 6mm

CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Material

Finish

Ferrule

Model Number:
