UFO S1 Sparkle Fitting
A flanged sparkle point fitting which is available in plastic for indoor use or stainless steel for outdoor use.
This fitting is popular with signmakers and for ease of installation in ceilings.
As an optional extra, we can supply accessory tubes which allow mounting these fittings through single or double skinned ceilings. These are available in 25mm, 80mm or 135mm lengths.

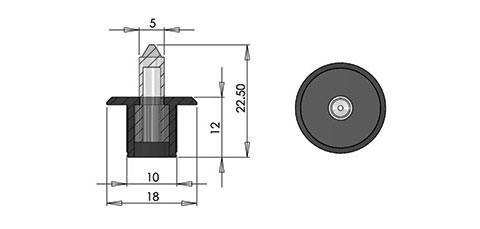

| TECHNICAL INFORMATION | |
|---|---|
| Material | Clear polycarbonate lens with polycarbonate black, white or chrome or natural stainless steel flange. Stainless steel flange is a special order item only and is subject to extended lead times. |
| Weight | 1.2g (polycarbonate flange) |
| Mounting Method | Push fit |
| Mounting Hole Size | 10mm |
| Ferrule Size | Size 1 crimp ferrule |
| Fibre Sizes | 1mm active diameter |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Flange
Flange Colour
Model Number:
